FP FPi-6600 Series Folder Inserter Inserters FP
FP FPi-6600 Series Folder Inserter Inserters FP
FP FPi-6600 Series Folder Inserter Inserters FP
FP FPi-6600 Series Folder Inserter Inserters FP

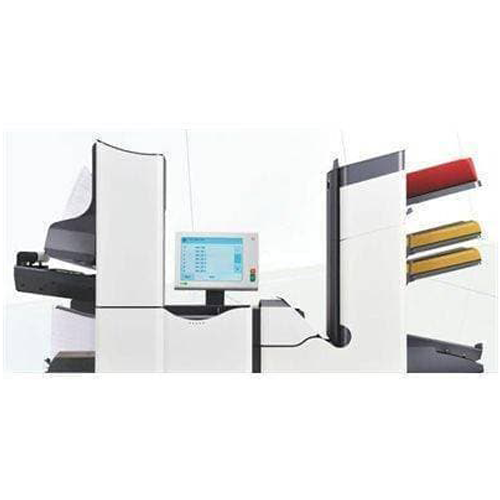

FP FPi-6600 Series Folder Inserter

  • SKU: FPFPI6600SERIES
  • GTIN/UPC: 096224649316
$31,584.00
Request A Quote
Need Advice?
Call us at (800) 243-9226

Eligible for FREE FREIGHT SHIPPING within the contiguous United States.

This product requires Liftgate Service. If you don't have a loading dock or a forklift available to move the delivery off of the truck, please add Liftgate Service to your cart.
If applicable, there is an additional charge for freight-related residential delivery.

Basic Specs of the FPi-6600

  • Up to 7 feeder stations
  • Processes up to 4,300 pieces an hour
  • Duty cycle of up to 80,000 items a month
  • Standard feeder holds 325 sheets
  • High capacity feeder hold 725 sheets
  • Vertical output stacker holds up to 500 filled envelopes
  • Fold types: Single, C, Z, Double Parallel and no fold
  • Folds up to 10 sheets of 20 lb bond
  • Handles envelopes up to 6.3"H x 9.7"W
  • Handles documents up to 14"H x 9"W
  • Dimensions: 29.5"W x 59"D x 36.5"H
  • Weight: 305 lbs.

Features of the FPi-6600

  • 10.4" touchscreen control panel
  • 25 programmable jobs
  • Optional OMR
  • Automatic Fill and Start program
  • Collates sheets before folding
  • Piece counter
  • Double document detector

Price shown is for the FPI-6660 with 6 standard trays. Additional options include:

  • FPi-6620 - 2 Standard Trays
  • FPi-6620S - 1 Standard Tray and 1 Special Tray
  • FPi-6620BA - 2 Trays with Bottom Address Feature
  • FPi-6630 - 3 Tray Inserter: Lower Trays = Standard, Upper Tray = HCDF
  • FPi-6630S - 3 Tray Inserter: Lower Trays = Special, Upper Tray = HCDF
  • FPi-6630BA - 3 Tray Inserter: Lower Trays = Special, Upper Tray = HCDF + Bottom Address
  • FPi-6640 - 4 Standard Trays
  • FPi-6640S - 3 Standard Tray and 1 Special Tray
  • FPi-6640BA - 4 Trays with Bottom Address Feature
  • FPi-6650 - 5 Tray Inserter: Lower Trays = Standard, Upper Tray = HCDF
  • FPi-6650S - 5 Tray Inserter: Lower Trays = Special, Upper Tray = HCDF
  • FPi-6650BA - 5 Tray Inserter: Lower Trays = Special, Upper Tray = HCDF + Bottom Address
  • FPi-6660S - 5 Standard Tray and 1 Special Tray
  • FPi-6660BA - 6 Trays with Bottom Address Feature

Please specify which configuration you'd like when ordering.

The FP FPi-6600 Folder Inserter has an impressive duty cycle and numerous different configurations to ensure that any large folding and inserting job can be accomplished.

Description of the FP FPi-6600 Folder Inserter

The FPi-6600 Folder Inserter is the more advanced version of the FPi-5600, offering higher performance and additional features that make processing large amounts of mail a breeze. There are fifteen configurations to choose from in the 6600 series, making this machine as versatile as possible to ensure any of your folding and inserting needs are met. In its maximum configuration, the FPi-6600 has 2 Maxi-feeders and a high-volume document feeder which makes it possible to process more than 3,000 sheets of paper. Numerous additional options such as high capacity feeders, trays, and OMR(Optical Mark Reader) make this folder-inserter fully customizable. For example, the Versa-feeder is for feeding especially thick documents (brochures). Operation is simple thanks to the 10.4" color touchscreen with both instructions and graphic symbols to lead you through every job.

Manufacturer Name FP
Fold Types Single Fold, C Fold, Z Fold, Double Parallel Fold, No Fold
Speed 4,300 pieces/hour
Max Number of Full Page Inserts 10 Sheets
Feed Tray Capacity Up to 725
Accepted Envelope Sizes 6.3" - 9.7" W x 3.5" - 6.3" H
Accepted Paper Sizes 5.1" - 9" W x 3.5" - 14" L
Duty Cycle 80,000
Envelope Feed Hopper Capacity Up to 500
Programmable Presets 25
Model # 6600
Manufacturer Part Number FPi6600
Weight 305 lbs.
Height 36.5"
Width 29.5"
Depth 59 inches
Shipping Weight 305.0 lbs.
