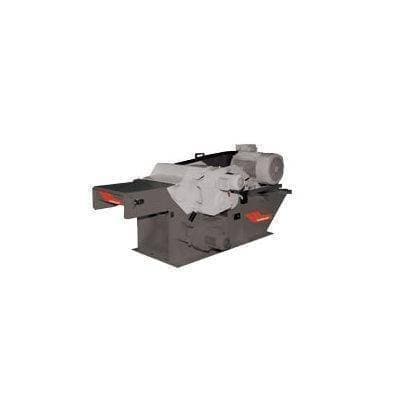

Cumberland VH-34 Shredder (VH Series)

  • SKU: NDSVH-34

This product has limited availability and/or is build-to-order.
Please call us at (800) 243-9226 or fill out the Request a Quote form, below.

Request A Quote
Need Advice?
Call us at (800) 243-9226

Features of the Cumberland VH-34 Shredder

  • Low speed/high torque design
  • Easy accessibility
  • Equity “buyback" guarantee
  • 4-way, indexable cutting inserts
  • Lifetime limited warranty on cutting rotor
  • Oversized drivetrain
  • Powerbelt rotor drive
  • Heavy, spherical roller bearings
  • High output “torsion point" cutting rotor
  • Severe duty construction
  • Built-in pneumatic discharge port
  • Stress-free frame, robotically welded
The Cumberland VH-34 Shredder (VH Series) can easily tackle PVC fencing, vinyl siding, cardboard, plastics, carpeting, and much more.

Description of the Cumberland VH-34 Shredder (VH Series)

In the world of manufacturing and industrial production, there can be an enormous amount of waste material. There is a requirement for most producers to reduce the size of their waste output, and many resort to size reduction equipment to give them the results they require. However, it can be challenging to obtain machinery capable of processing materials effectively, and so Cumberland offers its VH Series of rotary shredders. These can handle such a wide range of loads that they are a single step solution. The Cumberland VH-34 Shredder (VH Series) can easily tackle PVC fencing, vinyl siding, cardboard, plastics, carpeting, and much more. This shredder is capable of such challenging work due to its intelligent design and efficient components and features. The enormous infeed area measures 34" x 5" and is equipped with an effective set of feed rolls that clamp the stock into place. This prevents any sort of dangerous bouncing or backward movement and feeds the material into the cutters.

The Cumberland VH-34 shredder uses a 15" rotor that has 44 cutters. These are reversible cutters that help the high output and torsion point rotor to tackle many different tasks. The oversized drive train and the heavy roller bearings also help this low speed machine to deliver high torque with each turn. The throughput rate on the Cumberland VH-34 Shredder varies between 1000 and 6000 pounds per hour, proving this machine's flexibility. Not only does the machine generate reliable results and safe operation, but it also offers some impressive manufacturer's guarantees too. There are buyback programs in place and even a lifetime warranty on the cutting rotor. This shows that the entire unit is considered by its maker to be totally reliable over the long term.

With a 75 HP motor, extremely low maintenance design, and flexible performance the Cumberland VH-34 Shredder is a good solution for many kinds of manufacturers and producers. The unit is easily accessible for any moments when maintenance is required, and it is among the safest of machines thanks to the various features and components at the infeed and discharge areas. It can be called upon to perform tasks that other shredders could not manage and yet it can also tackle some very standard processes with ease and reliability as well. All in all, this is a good choice for a long list of different processors.

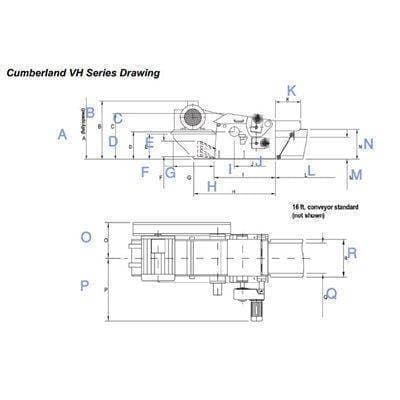

Line Drawings & Dimentions for VH Series

A, in.(mm)
B, in.(mm)C, in.(mm)D, in.(mm)E, in.(mm)F, in.(mm)G, in.(mm)H, in.(mm)I, in.(mm)J, in.(mm)K, in.(mm)L, in.(mm)M, in.(mm)N, in.(mm)O, in.(mm)P, in.(mm)Q, in.(mm)R, in.(mm)
51 (1295)49 (1247)26 (660)21 (533)20 (508)12 (305)32 (813)63 (1600)47 (1194)16 (406)20 (508)197 (5004)17 (432)23 (584)29 (737)44 (118)34 (864)38 (965)

Manufacturer Name Cumberland
Horsepower 75HP (55.9kW)
Model # VH-34
Weight 7600
Voltage 460/3/60
Warranty N/A
Shipping Weight 7600.0000
Shipping Height N/A
