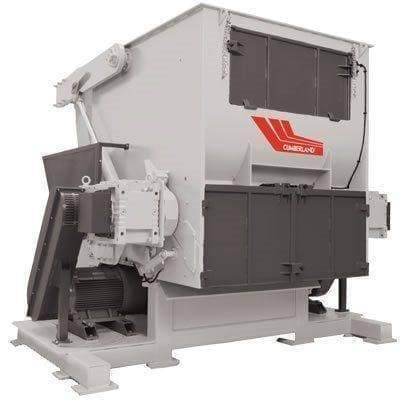

Cumberland CXS 3000 Single Shaft Shredder (CXS Series) (Discontinued)

  • SKU: NDSCXS3000

This product has limited availability and/or is build-to-order.
Please call us at (800) 243-9226 or fill out the Request a Quote form, below.

Request A Quote
Need Advice?
Call us at (800) 243-9226

Features of the Cumberland CXS 3000 Single Shaft Shredder (CXS Series)

  • Sturdy “swing-style" ram minimizes space and allows product to fall into the rotor
  • Serrated ram plate for holding product into the rotor
  • Outboard mounted bearings reduces contamination
  • Square cutters that are reversible for quick changes
  • Large 29.5" (750mm) diameter rotor for positive ingestion
  • Bolted in cutterseat for easy removal and maintenance
  • Abrasion resistant rotor standard for long life
  • Dual motor driven for even hp displacement on both shaft ends
  • Two speed ram hydraulics
Cumberland CXS 3000 Single Shaft Shredder (CXS Series)

Description of the Cumberland CXS 3000 Single Shaft Shredder (CXS Series)

The Cumberland CXS 3000 Single Shaft Shredder handles various types of materials, even some heavy duty shredding procedures. The system can be customized to accommodate most demands and is supported by the impressive technology mounted right at the hopper feed opening. Here, there is a hydraulic feeding ram that uses a 15HP motor to keep materials heading into the system. Additionally, a ram comb plate relies on heavy toothing to force materials to remain in contact with rotor cutters and bed knives too. The Cumberland CXS 3000 offers an enormous hopper opening of 100" x 108". Materials enter the hopper and drop into the large 59" x 106" cutting chamber. This uses advanced technologies to ensure that the cutting processes are optimized. The rotor uses an incredible 136 cutters and is 29" in diameter. It interacts with the seven bed knives and all of the cutters and knives use D2 steel for durability and wear. The rotor is turned by two 150HP motors that are mounted at either end to ensure even torque displacement along the shaft. The motors use two stage hydraulics that are air cooled to prevent wear and keep conditions inside of the cutting chamber cool and optimized. No need to worry about polymer melting or smearing when friction and heat are kept to minimal levels. The outboard mounted bearings are also beneficial to the process by distributing force and simultaneously preventing contamination. This all makes the system easy to maintain and repair.

The rotor turns at 54RPM and this keeps things quiet, but there are other options that can also allow the Cumberland CXS 3000 Single Shaft Shredder to provide results that surpass anticipated levels. These include infeed and discharge conveyors, a hydraulic screen cradle for those who intend to configure the system to interact with a granulation unit, chamber wear protection to support the long life of the abrasion resistant rotor, specialize displays, specialty rotor cooling for feedstock at the highest risks for melting or depositing, and more. The Cumberland CXS 3000 Single Shaft Shredder is easy to maintain, clean, and customize. It can be a standalone solution for any firm in need of size reduction, shredding, and other processing of many different materials, but it can also be enhanced with other options that only enhance its high quality features.

Options

  • Hydraulic screen cradle
  • Rotor cooling
  • PLC with display
  • Chamber wear protection
  • Infeed and discharge conveyors
  • Easily configured with 2nd stage granulation

Line Drawings and Diagrams for CXS Series Single Shaft Shredder

ABCDEFG
142 (3607)102 (2591)34 (864)132 (3353)100 (2540)193 (4902)111 (2819)


Manufacturer Name Cumberland
Horsepower 2HP x 150HP (2kW x 111.8kW)
Rotor Diameter 29.5" (750mm)
Model # CXS 3000
Warranty N/A
Shipping Weight 0.0000
Shipping Height N/A
Search Terms cumberlandcxs, cumberland3000, cxs3000, cumberlandshredder, cxsshredder, cxs3000, cxsseries, 3000cxs, 3000shredder
