Cumberland 98 Single Shaft Shredder (200 HP)

  • SKU: NDSSS98-200H

This product has limited availability and/or is build-to-order.
Please call us at (800) 243-9226 or fill out the Request a Quote form, below.

Request A Quote
Need Advice?
Call us at (800) 243-9226

Features of the 98 Single Shaft Shredder

  • Infeed opening: 98" x 120" (2489mm x 3048mm)
  • Low speed / high torque design
  • Touch pad monitoring and control
  • Easy accessibility
  • Tramp metal protection
  • Low RPM / Low noise
  • Large infeed hopper
  • Severe duty construction
  • 4-way, indexable cutting inserts
  • High output “torsion point" cutting rotor
  • Precision hydraulic “process ram"
  • ISO 9001 manufactured
  • Rugged hydraulics
  • Stress-free frame
  • Lifetime Limited Warranty on cutting rotor
  • Oversized drivetrain
  • Heavy outboard spherical roller bearings
  • Fluid “TurboCoupling"
  • PLC control panel
  • 0.015" knife gap
  • Easy access screen

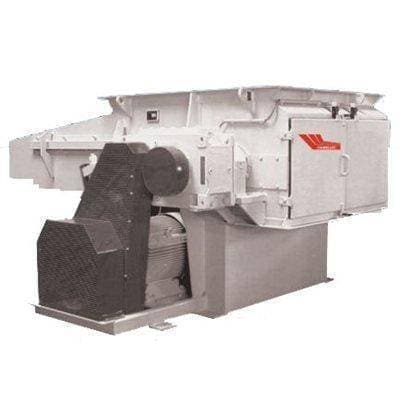

Description of the Cumberland 98 Single Shaft Shredder (200 HP)

The Cumberland 98 Single Shaft Shredder with a 200 HP motor is easily one of the largest and most rugged of the single shaft shredders. Cumberland is revered for equipping different industries with machines capable of tackling plastic waste processing or size reduction of difficult materials. They have a large line of single shaft shredders that can handle any sort of plastic waste - including baled films and extruder purgings, but these machines are extremely strong and can tackle even more difficult items such as carpet, cardboard, wood, discarded parts, and more. The Cumberland 98 single shaft shredder relies on the enormous infeed hopper measuring at 98" x 120" to handle such a large array of materials. It is built on a very durable foundation, and this supports the various components that make this such a reliable processing solution. The stress free frame is surrounded by heavy duty braces, reinforcements, and side walls. These give support to the massive drive shaft, the oversized roller bearings, and the heavy duty hydraulics, which keep the machine operating smoothly. The turbo coupling is also part of the low speed and high torque design, which absorbs vibrations and converts torque when heavier loads are encountered.

There are many ways the Cumberland 98 single shaft shredder self-adjusts for different loads and capacities, including a hydraulic process ram that ensures loads are in contact with the rotor at all times, but which adjusts to any sort or load variable. The hydraulic pump recognizes shock loads and kicks in to keep the entire unit properly cooled and safe from damage. The cutting rotor is a high output and torsion point unit that relies on four way cutting inserts to get the job done. This rotor turns materials against the anvil that features a counter knife plate to ensure that processing is consistent and reliable. The Cumberland 98 single shaft shredder is a versatile machine, but it can also be enhanced with some options or upgrades in order to serve as a single point solution for processing needs. Those who reclaim, recycle, or perform size reduction of challenging materials can rely on the Cumberland 98 single shaft shredder as a viable and intelligent choice.

Options

  • Optional control brands
  • Quick disconnect and quick clean screens
  • Application specific programming and control integration
  • Multiple rotor configurations
  • Special purpose screens
  • Critical-duty drivetrain
  • High speed ram
  • Wear resistant cutting chamber
  • Turn-key recycling and reclamation systems and material handling products installation

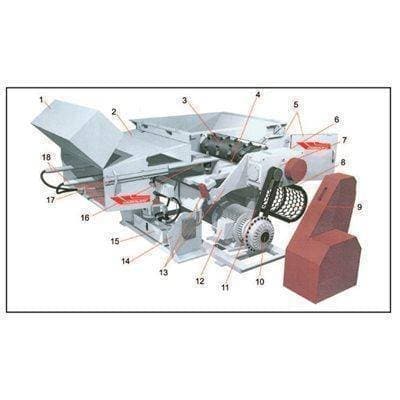

 Line Drawings for Single Shaft Shredders


Manufacturer Name Cumberland
Horsepower 200 HP
Model # SS98-200H
Warranty N/A
Shipping Weight 0.0000
Shipping Height N/A
Search Terms cumberlandshredder, singleshaft, shaftshredder, cumberland98, 98shredder, 98shaft, 200hp
