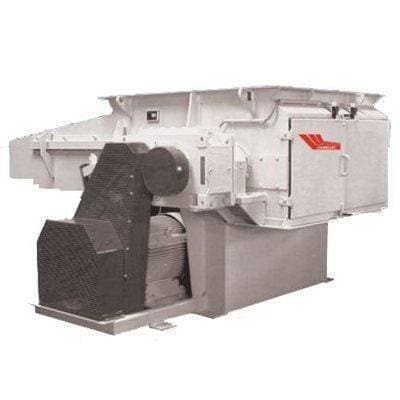

Cumberland 62 Single Shaft Shredder (100 HP)

Description of the Cumberland 62 Single Shaft Shredder (100 HP)

Plastic processing, reclamation, or size reduction can be quite varied, and yet it is not always possible to find machinery capable of handling diverse loads. Cumberland offers a range of single shaft shredders that can accommodate plastics of all kinds - including films and extruder purgings, but they can also tackle more substantial materials such as carpeting, wood processing scraps, and more. The Cumberland 62 Single Shaft Shredder with a 100 HP motor is a large and powerful model in this line, and can deliver a long term solution to many different kinds of processing needs. This Cumberland model is built on a stress free frame with durable side walls, reinforcements, and braces. These are capable of giving the support necessary for the oversized drive shaft and the double row of self-aligning outboard roller bearings that provide the machine with its powerful capabilities. The high powered motor is partnered with the high output cutting rotor, and using low speed and high torque, the Cumberland 62 single shaft shredder is capable of processing many difficult materials.

The design of the machine supports the oversized reduction gear box that is actually rated to crush rock, which only adds to the unit's capabilities. The rotors are fitted with four way cutting inserts that meet the anvil's counter knife plate for optimal processing. The massive infeed hopper, measuring 62" x 80" is also fitted with the innovative and effective hydraulic process ram. This is a design that keeps all of the materials in constant contact with the rotors, ensuring that processing is uninterrupted. The infeed features a hinged cover and heavy shelf that ensures that heavy materials do not damage the machine as well. The Cumberland 62 single shaft shredder also has a hydraulic pump that activates when any heavy shock loads are detected. This allows the low speed and high torque design to continue to operate safely because the pump begins using the oversized cooling system to protect components and parts from harm. The Cumberland 62 single shaft shredder is a large and powerful processor that will tackle some of the most challenging materials, whether plastic or a bit more rugged, and yet it will not easily jam or need down time for cleaning or repair.

Options

• Optional control brands
• Quick disconnect and quick clean screens
• Application specific programming and control integration
• Multiple rotor configurations
• Special purpose screens
• Critical-duty drivetrain
• High speed ram
• Wear resistant cutting chamber
• Turn-key recycling and reclamation systems and material handling products installation

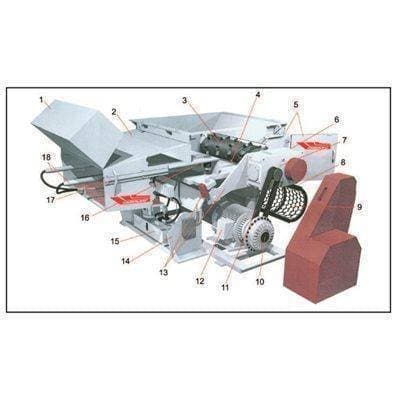

 Line Drawings for Single Shaft Shredders
