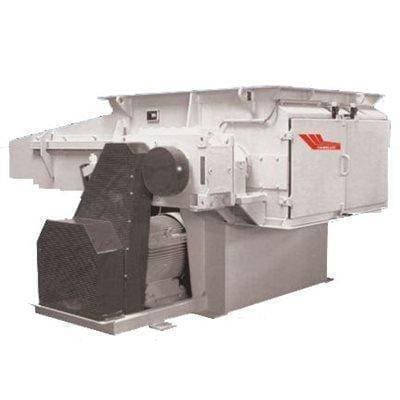

Cumberland 52 Single Shaft Shredder (75 HP)

Cumberland 52 Single Shaft Shredder (75 HP)

Features of 52 Single Shaft Shredder

  • Infeed opening: 52" x 68" (1321mm x1727mm)
  • Low speed / high torque design
  • Touch pad monitoring and control
  • Easy accessibility
  • Tramp metal protection
  • Low RPM / Low noise
  • Large infeed hopper
  • Severe duty construction
  • 4-way, indexable cutting inserts
  • High output “torsion point" cutting rotor
  • Precision hydraulic “process ram"
  • ISO 9001 manufactured
  • Rugged hydraulics
  • Stress-free frame
  • Lifetime Limited Warranty on cutting rotor
  • Oversized drivetrain
  • Heavy outboard spherical roller bearings
  • Fluid “TurboCoupling"
  • PLC control panel
  • 0.015" knife gap
  • Easy access screen

Cumberland's line of single shaft shredders provide ideal solutions to many plastic processors. The Cumberland 52 Single Shaft Shredder (75 HP) handles plastic waste, large extruder purgings, wood processing waste, carpeting, and more.






SKU: NDSSS52-75H ISBN: 9358474058289
Request A Quote

Secured & Safe Checkout :

trust badge

Description of the Cumberland 52 Single Shaft Shredder (75 HP)

When a company must process, reclaim, or tackle size reduction of plastics, it can be challenging to find a machine that can tackle a variety of loads. Cumberland has designed a full line up of single shaft shredders that can provide ideal solutions to many plastic processors. The Cumberland 52 Single Shaft Shredder with a 75 HP motor can handle any type of plastic waste, including large extruder purgings, but it will also tackle things like wood processing waste, carpeting, and more. The Cumberland 52 single shaft shredder is capable of such a diverse range of processing thanks to its optimal and intelligent design. The entire unit is built with durability in mind and this is easily seen in the rugged stress free frame, the heavy duty side walls, and the massive drive train. This support system can then allow the large motor to work with the outboard roller bearings to run the incredibly powerful rotor.

Materials enter the Cumberland 52 single shaft shredder through the enormous infeed that measures 52" x 68". The special hydraulic process ram actually holds all of the materials against the rotor. This allows the four way cutting inserts to pull the materials into the chamber and against the replaceable counter knife plate. The process is performed using low speed, which creates very high torque. The heavy duty construction of the Cumberland 52 single shaft shredder is supported by the shock recognition of the hydraulic pump. This unit responds instantly to loads that are heavier and more demanding and will keep the entire machine properly cooled to ensure that none of the parts or systems is harmed by moments of higher demand.

Though the Cumberland 52 single shaft shredder is clearly designed to deliver the best results possible, and is equipped with features that prevent damage or wear, there are times when upgrades are needed. This unit can accept many different options that include a heavier drive train, different screens, and higher speed ram. If you need reliable processing or size reduction of heavy plastics and other rugged materials, consider this unit as a good solution. The Cumberland 52 single shaft shredder will give many years of service and demand very little in terms of maintenance and repair.

Options

  • Optional control brands
  • Quick disconnect and quick clean screens
  • Application specific programming and control integration
  • Multiple rotor configurations
  • Special purpose screens
  • Critical-duty drivetrain
  • High speed ram
  • Wear resistant cutting chamber
  • Turn-key recycling and reclamation systems and material handling products installation

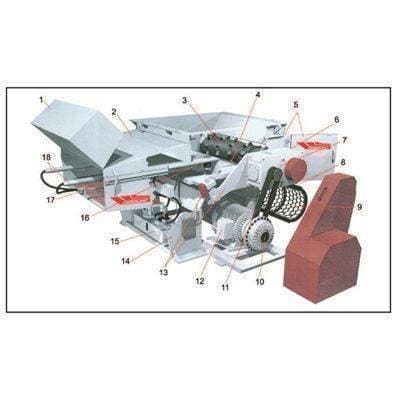

 Line Drawings for Single Shaft Shredders


Manufacturer Name Cumberland
Horsepower 75 HP
Model # SS52-75H
Warranty N/A
Shipping Weight 0.0000
Shipping Height N/A
