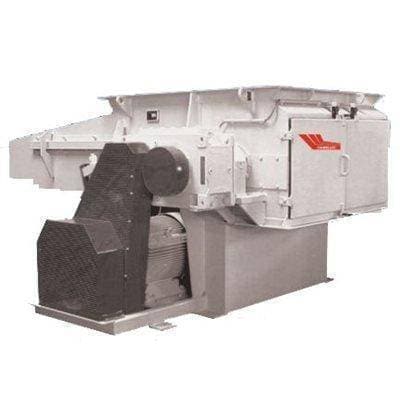

Cumberland 52 Single Shaft Shredder (60 HP)

Description of the Cumberland 52 Single Shaft Shredder (60 HP)

Processing, size reduction, and reclamation of plastics are challenging issues. There are many requirements and many different weights and materials that have to be handled. Fortunately, Cumberland offers a large line of single shaft shredders that are ideally suited to plastics processing. Additionally, these machines are so well made and durable that they can also tackle some far more extreme materials, including carpeting, films, cardboard, and more. The Cumberland 52 Single Shaft Shredder with a 60 HP motor is capable of so much thanks to its impressive design and features. The heavy duty materials, including durable side walls and stress-free framing can support the oversized drive train that powers this machine. It uses simple controls to ensure the best performance and easy monitoring. The enormous infeed measures at 52" x 68" and forces materials into the high output torsion point cutting rotor. This uses a low speed and high torque design that ensures that no jamming will occur, and the hydraulic process ram actually pinions materials against the rotors to ensure safety and functionality. The rotors are fit with four way cutting inserts and these meet the counter knife plate to complete processing.

The Cumberland 52 single shaft shredder can recognize heavier loads, or shock loads, and will automatically start the cooling system to prevent unwanted wear and tear on machinery or components. This single shaft shredder has high capabilities and even the gear box is rated to crush stone. Of course, not all shredders are capable of delivering the exact results desired, and so this unit is capable of being equipped with many excellent options or upgrades. These include the special purpose screens, different rotor configurations, a heavier duty drive train, and many units meant to create complete recycling or reclamation systems (including discharge conveyors or inline granulators). The Cumberland 52 single shaft shredder is meant to deliver reliable service over many years. Its design emphasizes low maintenance demands and infrequent jams or delays. It will require very little down time and can handle some of the most challenging materials available. Though identified as an ideal solution for those handling plastic waste, it is a good choice for those with more rugged loads and demands.

Options

• Optional control brands
• Quick disconnect and quick clean screens
• Application specific programming and control integration
• Multiple rotor configurations
• Special purpose screens
• Critical-duty drivetrain
• High speed ram
• Wear resistant cutting chamber
• Turn-key recycling and reclamation systems and material handling products installation

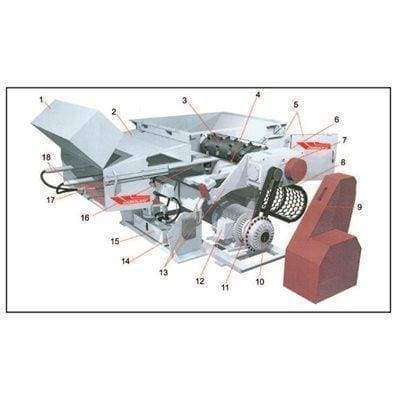

 Line Drawings for Single Shaft Shredders
