Cumberland 52 Single Shaft Shredder (50 HP)
Features of 52 Single Shaft Shredder
- Infeed opening: 52" x 68" (1321mm x 1727mm)
- Low speed / high torque design
- Touch pad monitoring and control
- Easy accessibility
- Tramp metal protection
- Low RPM / Low noise
- Large infeed hopper
- Severe duty construction
- 4-way, indexable cutting inserts
- High output “torsion point" cutting rotor
- Precision hydraulic “process ram"
- ISO 9001 manufactured
- Rugged hydraulics
- Stress-free frame
- Lifetime Limited Warranty on cutting rotor
- Oversized drivetrain
- Heavy outboard spherical roller bearings
- Fluid “TurboCoupling"
- PLC control panel
- 0.015" knife gap
- Easy access screen
The durable Cumberland 52 Single Shaft Shredder (50 HP) is known as a suitable choice for those who process films, carpets, wood processing scraps, purging, and much more.
Secured & Safe Checkout :
Description of the Cumberland 52 Single Shaft Shredder (50 HP)
The reclamation, recycling, or size reduction of plastics is a relatively common part of many industrial processes. However, not all shredders are alike, and the name Cumberland is often one cited when it is durable and reliable results required. They make a large array of single shaft shredders available, and the Cumberland 52 Single Shaft Shredder with a 50 HP drive is definitely one to consider a very good solution for plastics processing. This is such a durable machine that it is also identified as a suitable choice for those who process films, carpets, wood processing scraps, purging, and much more. The Cumberland 52 single shaft shredder is capable of handling this array of materials thanks to its intelligent design. The enormous 52" x 68" infeed is equipped with a rugged hydraulic process ram that pins materials against the rotors. This fees them consistently into the chamber and towards the discharge, limiting risks of jams or problems. The chamber is 52" and uses the high output torsion cutting rotor equipped with four-way cutting inserts. These force materials against a counter knife plate that ensures that processing is done to the highest degree possible. The unit also has a hydraulic pump that responds to any shocks and sets the cooling system into action. This is meant to keep the system moving and to eliminate or reduce any risks of damage.
The Cumberland 52 single shaft shredder runs with a low speed and high torque system that allows the machine to operate quietly even as it performs demanding size reduction tasks. It uses heavy duty construction with durable side walls and a strong frame that supports the oversized drive train and the outboard roller bearings. Though it is durable and reliable, the Cumberland 52 single shaft shredder may need options that help it to deliver the necessary results. These can include alternate rotor configurations, special screens, a heavier drive train, and many size reduction machines such as granulators. All in all, the Cumberland 52 is a reliable and heavy duty size reduction solution. It is meant to operate for many years without fail, and its various systems ensure that it demands very little maintenance. This single shaft shredder can tackle a diversity of materials and is perfect for those processing plastics and even heavier goods.
- Optional control brands
- Quick disconnect and quick clean screens
- Application specific programming and control integration
- Multiple rotor configurations
- Special purpose screens
- Critical-duty drivetrain
- High speed ram
- Wear resistant cutting chamber
- Turn-key recycling and reclamation systems and material handling products installation

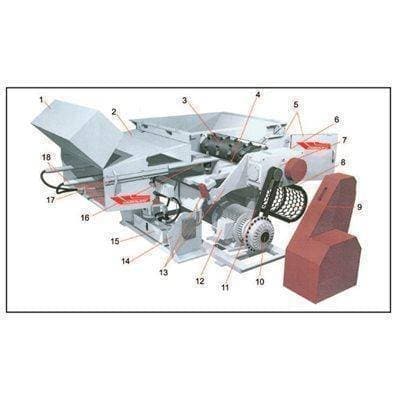

Line Drawings for Single Shaft Shredders
